Welding studs

Welding studs, together with tapped bosses and insulation nails, comprise a type of fastening that is resistant, waterproof and is fitted through installation without drilling. The studs do not penetrate within the base material but are simply fastened to the same by means of melting, which is triggered by the pin, where the energy of the capacitors is concentrated in a few thousandths of a second, melting the base of the stud.

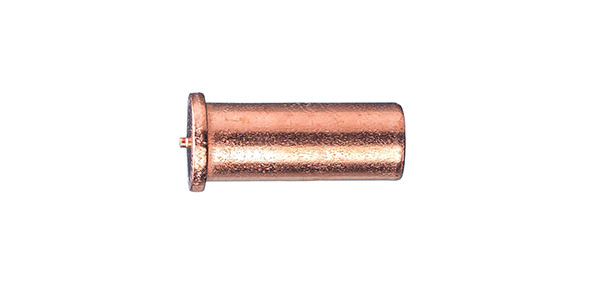

SC- Threaded studs with flange Type PS in steel 4.8 copper plated

Material: Steel 4.8 copper plated;
Material in Stainless steel A2-50 on request.

RICHIEDI PREVENTIVO / GET QUOTE

Indicaci il codice (Code), che puoi trovare nella scheda tecnica qui sotto, e la quantità di cui hai bisogno. Provvederemo a fornirti un preventivo personalizzato.

Data sheet

d₁	l₁	€ / 1000	Code	Pcs x box	d₂ ± 0,2	max h₅	h₁	α ± 1°
M3	6		320203006	1000	4	0,6	0,7 - 1,4	7°
	8		320203008	1000
	10		320203010	1000
	12		320203012	1000
	15		320203015	1000
	20		320203020	1000

M4	8		320204008	1000	5	0,6	0,7 - 1,4	7°
	10		320204010	1000
	12		320204012	1000
	15		320204015	1000
	20		320204020	1000
	25		320204025	1000

M5	10		320205010	1000	6	1,0	0,7 - 1,4	7°
	12		320205012	1000
	15		320205015	1000
	20		320205020	1000
	25		320205025	1000
	30		320205030	1000

M6	10		320206010	1000	7	1,0	0,7 - 1,4	7°
	12		320206012	1000
	15		320206015	1000
	20		320206020	1000
	25		320206025	500
	30		320206030	500

M8	12		320208012	1000	9	1,5	0,8 - 1,4	7°
	15		320208015	500
	20		320208020	500
	25		320208025	500
	30		320208030	250
	35		320208035	250
	40		320208040	250
